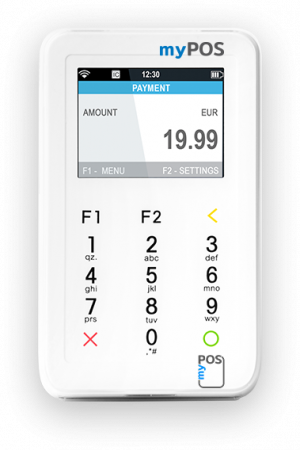

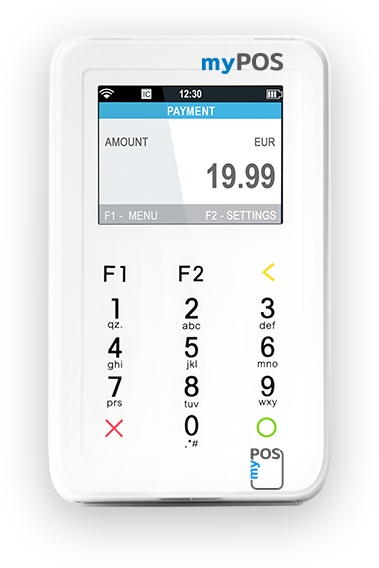

myPOS Mini

Weight & Dimensions:
(L x W x H): 121mm x 72mm x 22.5mm
Weight: 165g with battery

Display:
2.4 inch TFT colour LCD, 320 x 240 pixels

Communications:
Bluetooth 4.0 / Wi-Fi / SIM Card

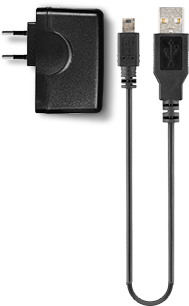

Power & Battery:
Battery: Li-ion battery, 1300mAh, 3,7 V
Input: 100 – 240V AC, 50 / 60 Hz, 0.2A
Output: 5VDC, 1A

Card Readers:
Magnetic Card Reader: Track 1 / 2 / 3, Bi-directional
Smart Card Reader: EMV L1 & L2 certified
Contactless Card Reader: MasterCard Contactless & Visa payWave, ISO14443 Type A/B, Mifare®, Felica, NFC

Printer:
No

Processor:
32-bit ARM11

Memory:
192MB (128MB Flash, 64MB SDRAM)

Keypad:
Touch-button input
10 numeric & 5 function keys

Card Slots:
1 SAM & 1SAM / SIM

Peripheral Ports:
1 micro USB;
1 RS232

Security:
PCI PTS 3.x certified
SRED

Environmental:
0°C to 50°C (32°F to 122°F) operating temperature
-20°C to 70°C (-4°F to 158°F) storage temperature
10% to 93% relative humidity, non-condensing

Cetifications:
PCI PTS 3.x, SRED
EMV Contact L1 & L2
EMV Contactless L1
Visa payWave
Mastercard Contactless
JCB J/Speedy
Mastercard TQM
Visa Ready
Mastercard MPOS
