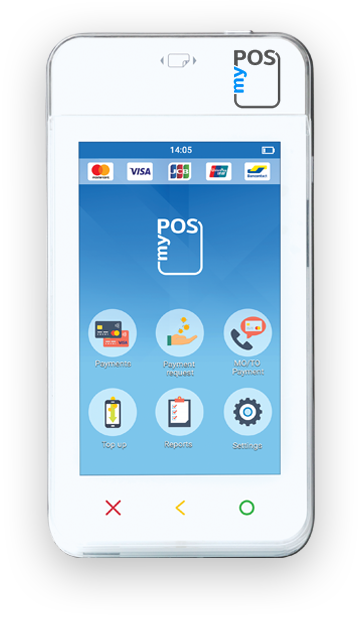

myPOS Mini Ice

Weight & Dimensions:
(L x W x H): 136.5mm x 70mm x 17.4mm
Weight: 182g with battery

Display:
4 inch TFT colour LCD, 800 x 480 pixels

Communications:
Bluetooth 4.0 / Wi-Fi / SIM Card

Power & Battery:
Battery: Li-ion battery, 3050mAh, 5 V
Input: 100 – 240V AC, 50 / 60 Hz, 0.2A
Output: 5VDC, 2A

Card Readers:
Magnetic Card Reader: Track 1 / 2 / 3, Bi-directional
Smart Card Reader: EMV4.3 L1 & L2 certified
Contactless Card Reader: ISO14443 Type A/B, Mifare®

OS:
Prolin

Processor:
Cortex A9

Memory:
Flash 512MB+DDR 512MB

Keypad:
Enter, Cancel, Clear (Touch key)
0~9 (Virtual key)

Card Slots:
1 Micro SAM Slot
1 Micro SIM Slot

Peripheral Ports:
1 micro USB

Audio:
Speaker

Security:
PCI-PED 4.x, SRED
3DES, RSA

Environmental:
0°C to 50°C (32°F to 122°F) operating temperature
10% to 93% relative humidity, non-condensing
-20°C to 70°C (-4°F to 158°F) storage temperature

Cetifications:
PCI PTS 4.x, SRED;
EMV Contact L1 & L2 EMV Contactless L1;
UnionPay qPBOC L1 & L2 Visa payWave;
MaterCard Contactless;
AMEX Expresspay;
Discover D-PAS JCB J/Speedy;
MasterCard TQM Visa Ready;
MasterCard MP

Accessories:
Wireless Charging Base (optional)
