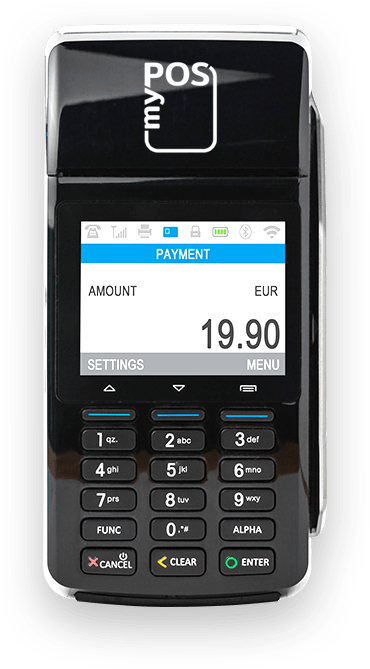

myPOS Combo

Weight & Dimensions:
(L x W x H): 162.5mm x 80mm x 56mm
Weight: 360g with battery

Display:
2.8 inch TFT colour LCD, 320 x 240 pixels

Communications:
Bluetooth 4.0 / Wi-Fi / SIM Card

Power & Battery:
Battery: Li-ion battery, 2300mAh, 7.4 V

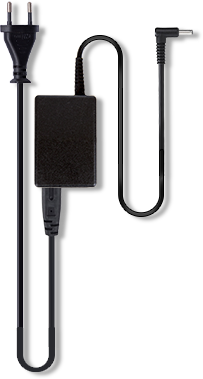

Input: 100 – 240V AC, 50 / 60 Hz, 0.3A
Output: 9VDC, 1A

Card Readers:
Magnetic Card Reader: Track 1 / 2 / 3, Bi-directional
Smart Card Reader: EMV L1 & L2 certified
Contactless Card Reader: Mastercard PayPass & Visa payWave, ISO 14443 Type A / B, Mifare®, Felica, NFC

Printer:
High-speed thermal printer, speed: 30 lps
Paper roll width / diameter: 58mm / 40mm

Memory:
192MB (128MB Flash, 64MB DDR);
Micro SD (TF card) up to 32GB

Processor:
32-bit ARM11

Keypad:
10 numeric keys & 8 function keys

Card Slots:
2 SAMs & 1 SIM
or 1 SAM, Dual SIM

Peripheral Ports:
1 x Mini USB (OTG);
1 x Mini USB (RS232);
1 x Power port

Security:
PCI PTS 4.x certified

Environmental:
0°C to 50°C (32°F to 122°F) operating temperature
-20°C to 70°C (-4°F to 158°F) storage temperature
10% to 93% relative humidity, non-condensing

Cetifications:
PCI PTS 4.x, SRED
EMV Contact L1 & L2
EMV Contactless L1
Visa payWave
Mastercard Contactless
Mastercard TQM
